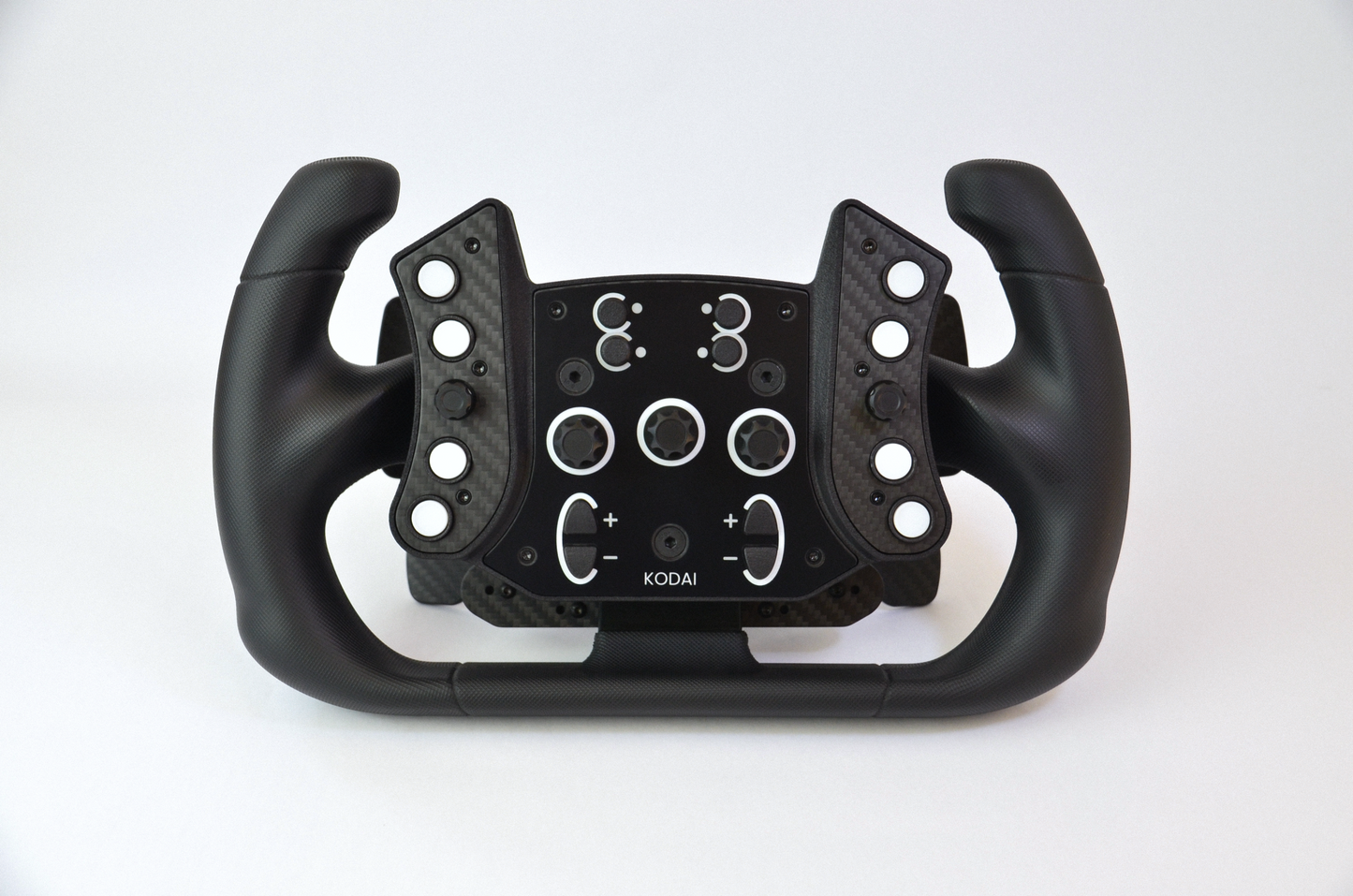

• A black universal button plate for a sim racing wheel with various buttons and rotary encoders, intended for gaming.

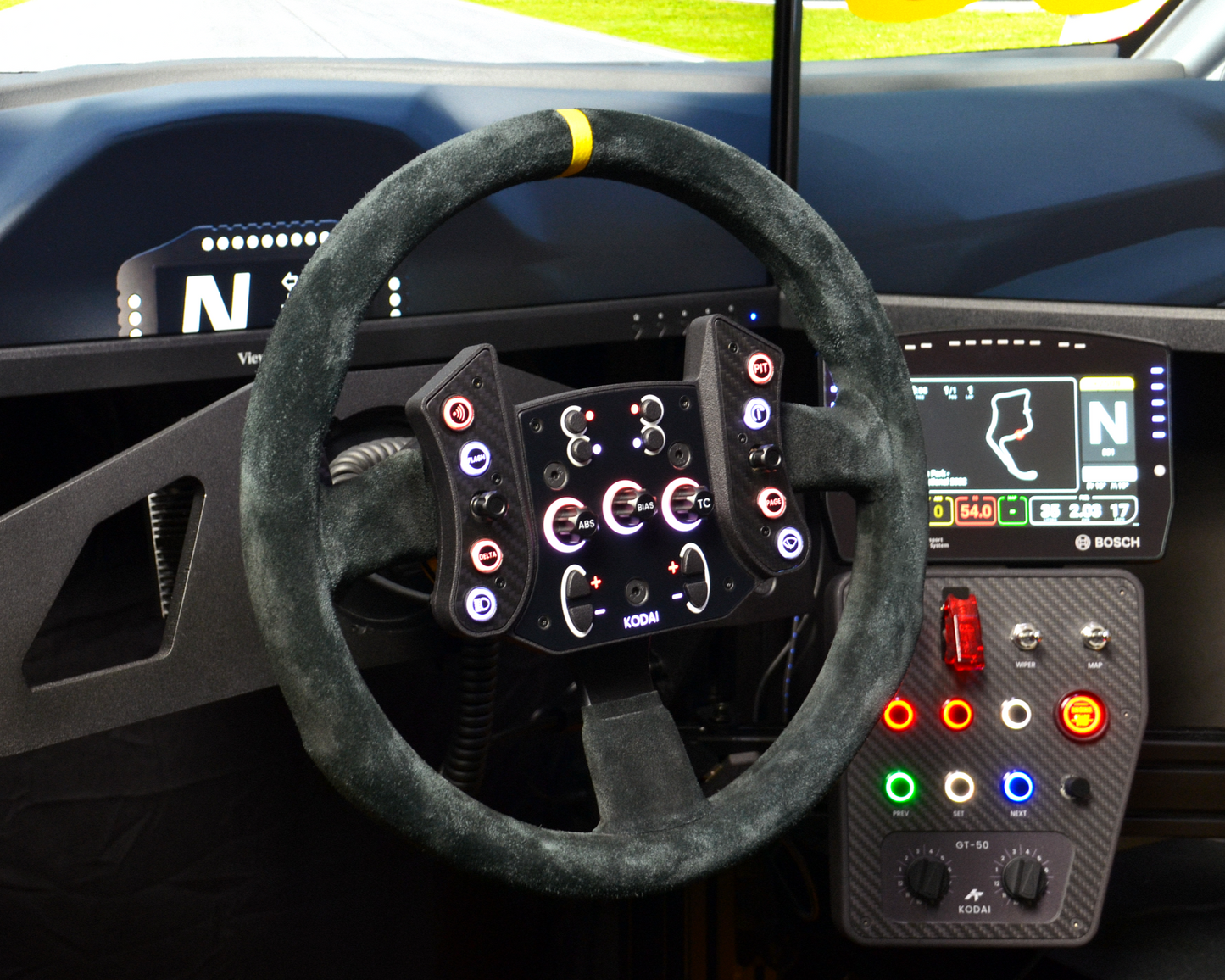

  • TCR3 DIY button plate mounted on sim racing rig with orange LED lighting, custom sim racing setup. Front side view.

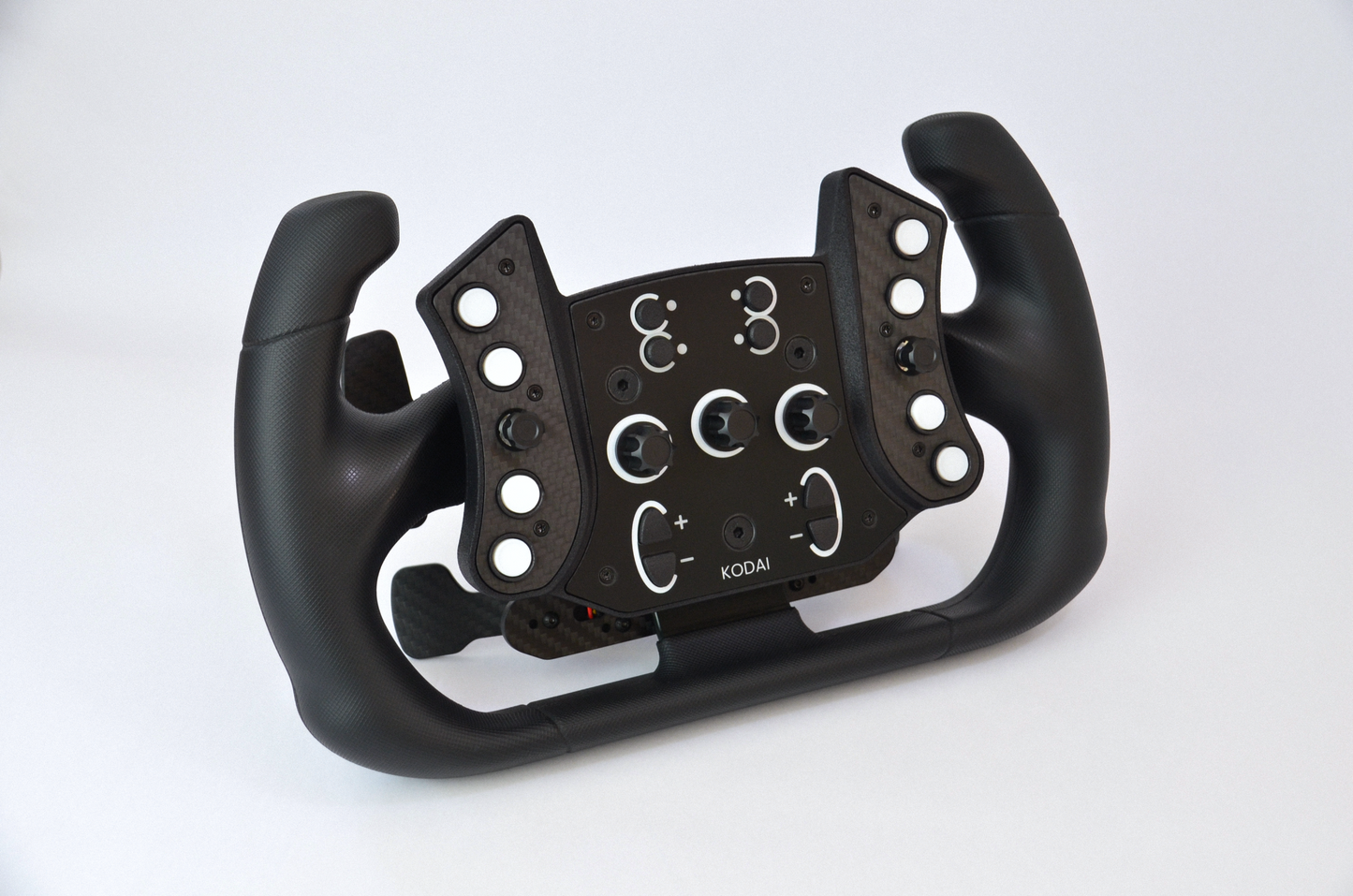

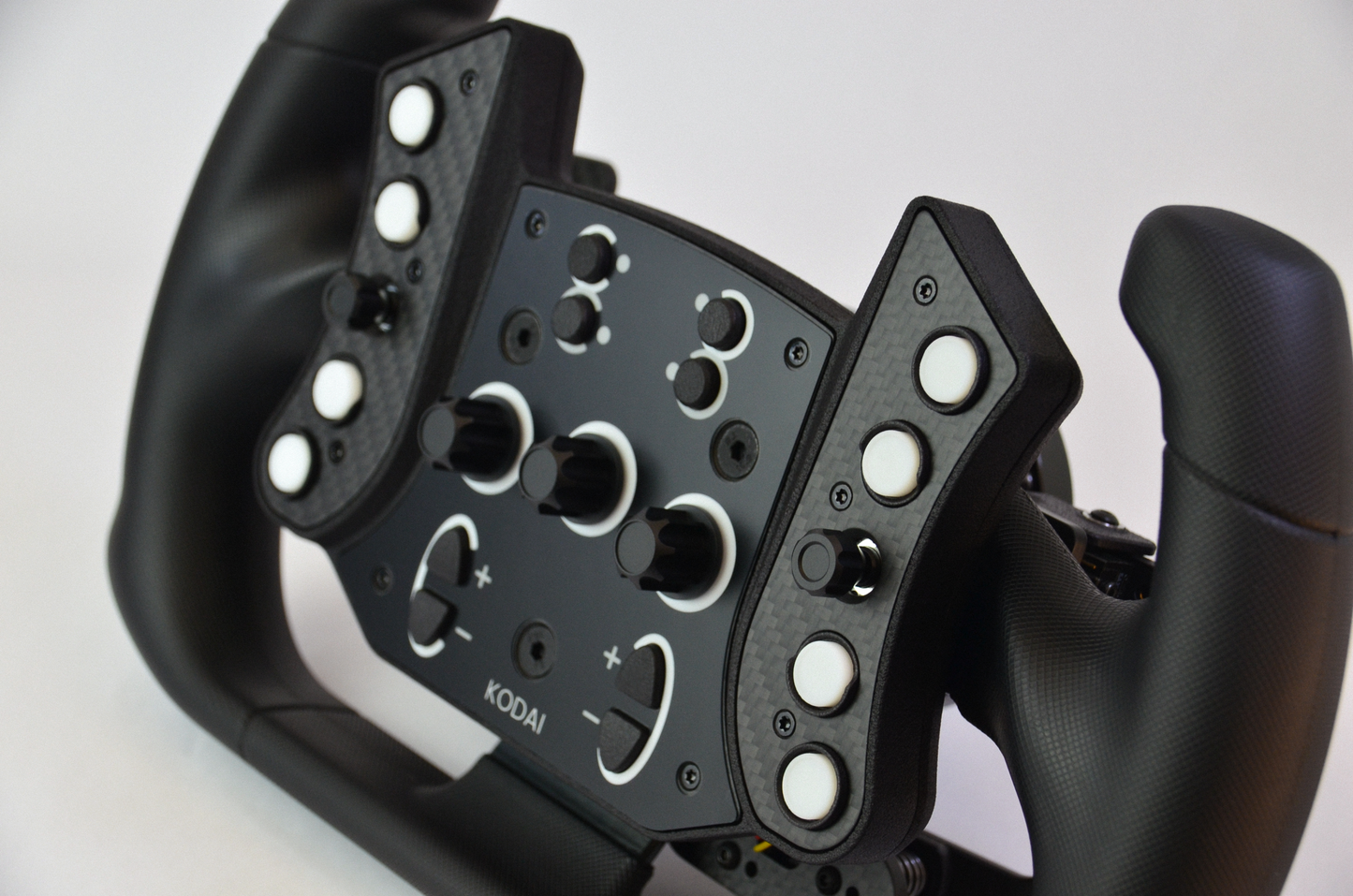

  • TCR3 DIY sim racing button plate full build, showing buttons, rotary encoders, and sticker. Close up side view.

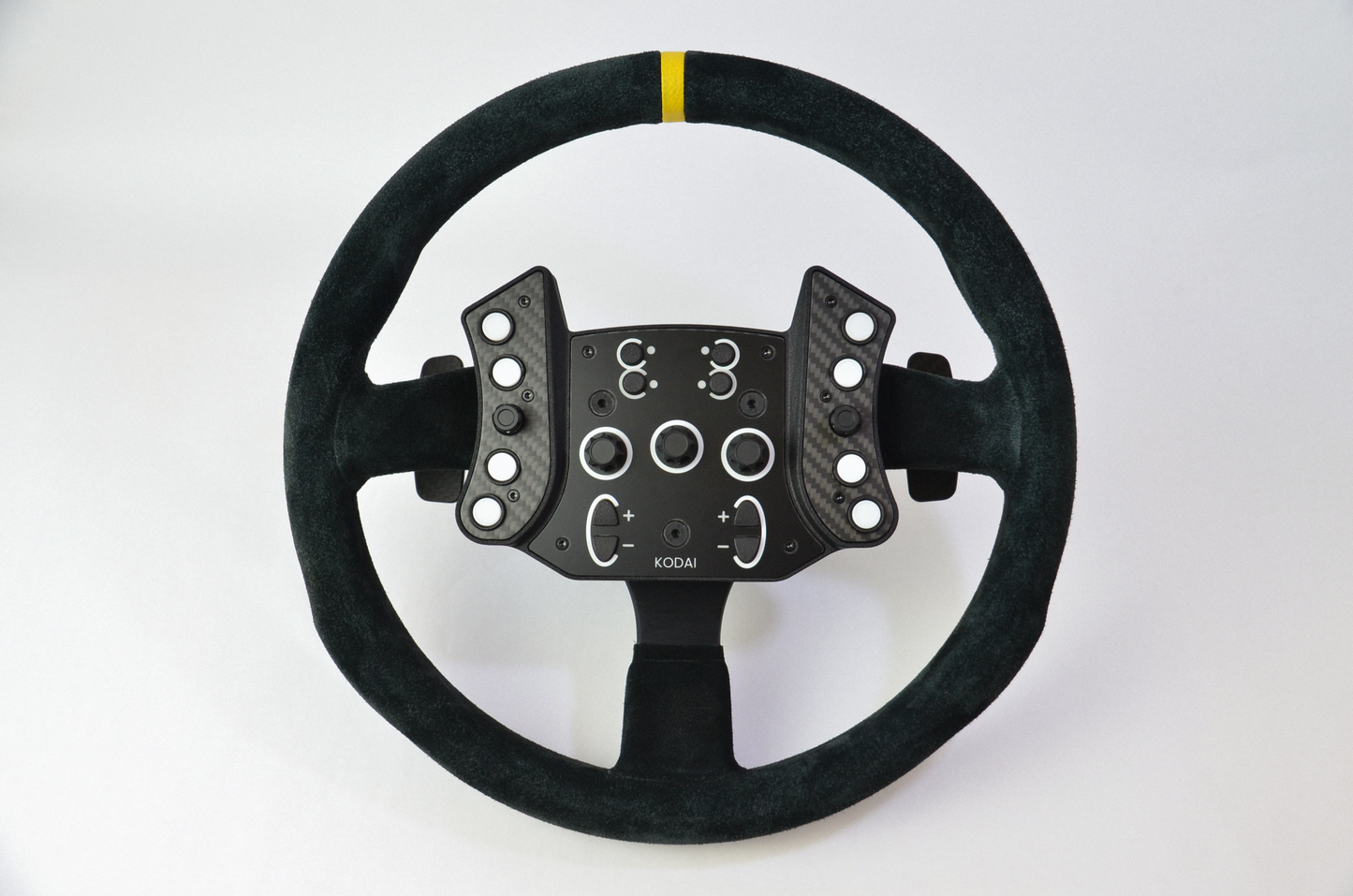

  • TCR3 DIY sim racing button plate full build, showing buttons, rotary encoders, and sticker with 320mm round wheel rim. Front view.

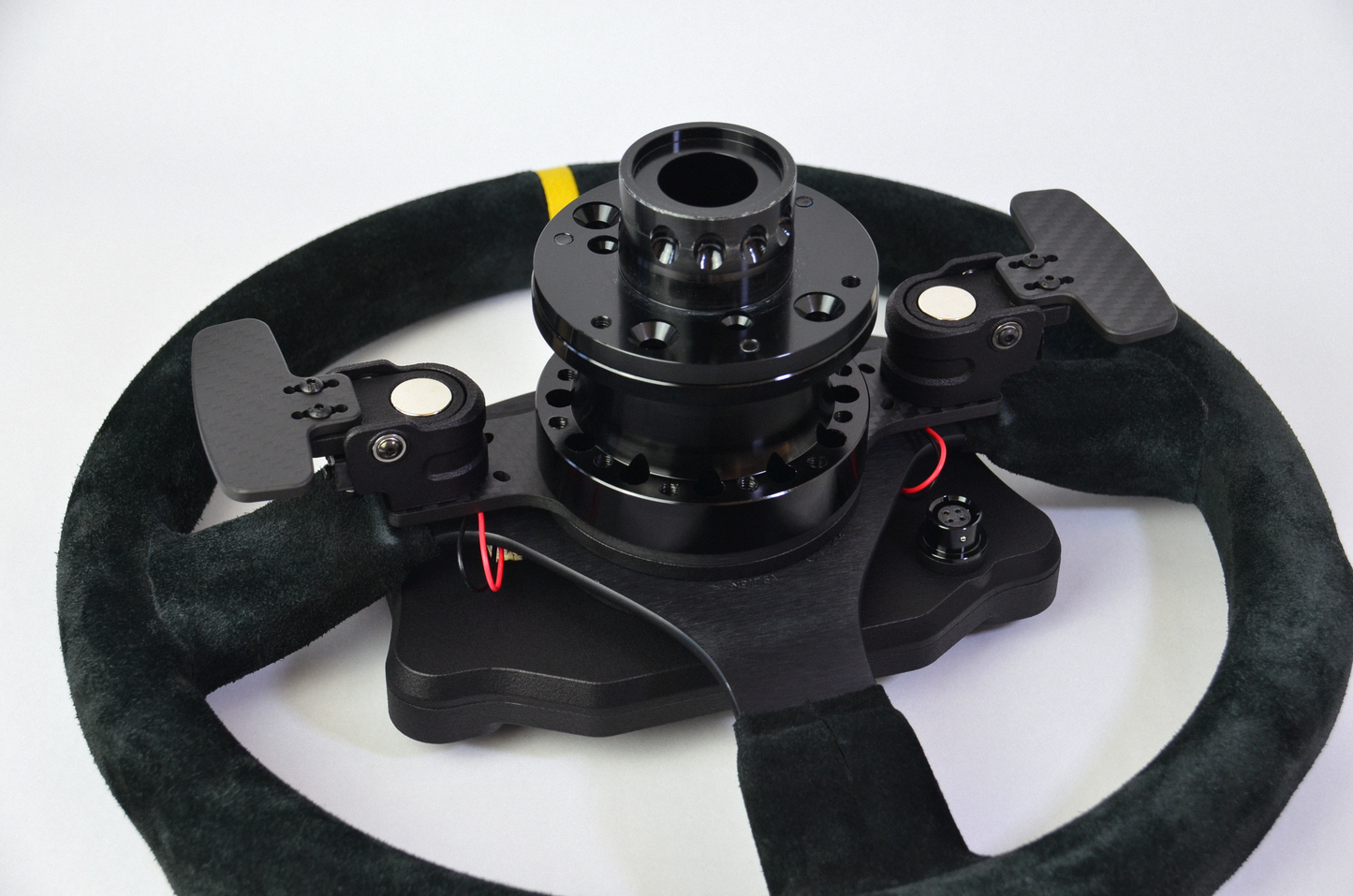

  • TCR3 DIY sim racing button plate full build, showing magnetic paddle shifters and dual clutch paddles with 320mm round wheel rim. Rear view.
  • TCR3 DIY sim racing button plate full build, showing buttons, rotary encoders, and sticker. Front view.

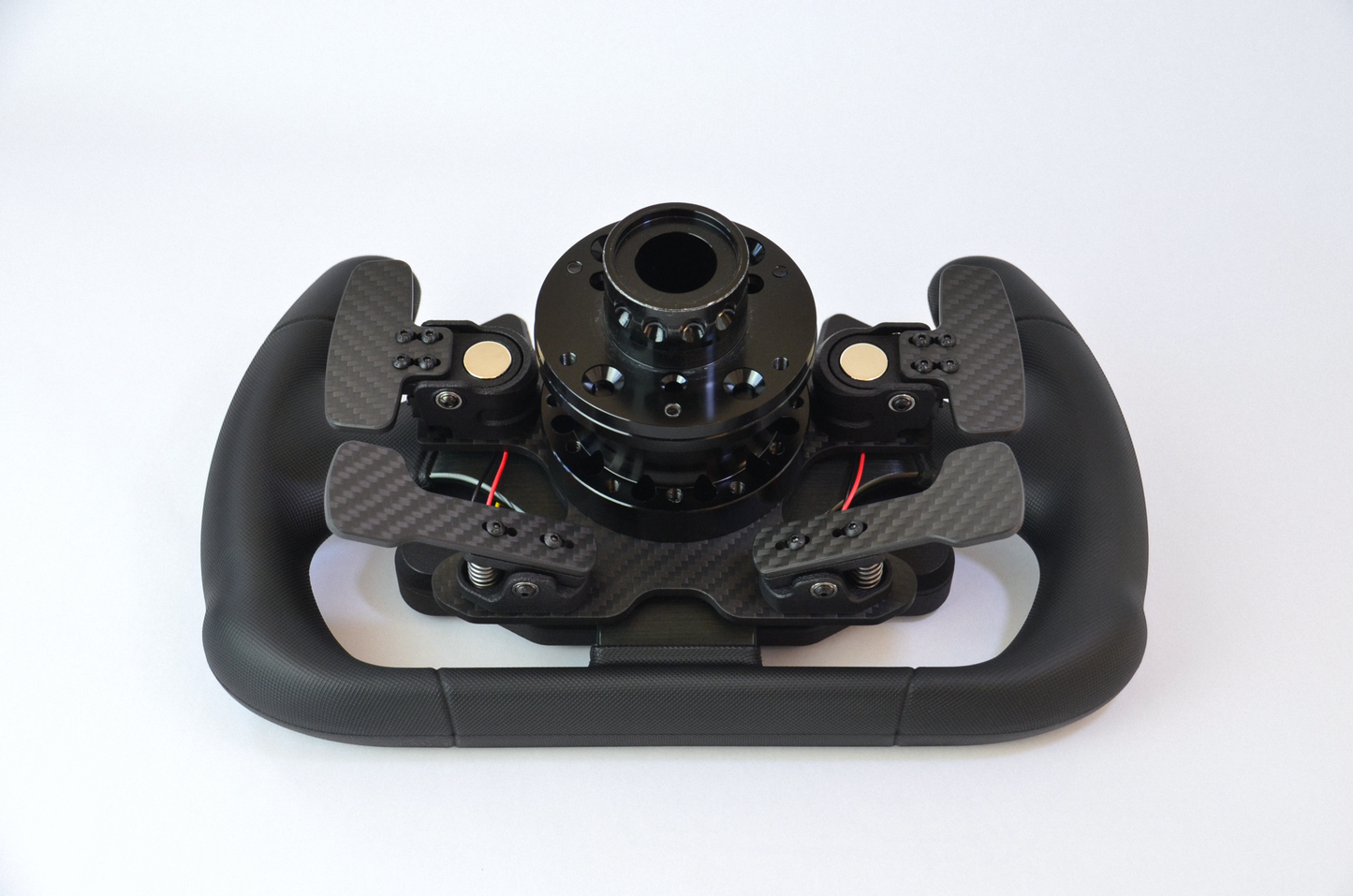

  • TCR3 DIY sim racing button plate full build, showing dual clutch and magnetic shifter paddles. Rear view.
1 7

KODAI Racing

TCR3 Project Files

TCR3 Project Files

£7.00 GBP
£7.00 GBP
Sale Sold out
Shipping calculated at checkout.

The TCR3 is a universal button plate to use with a wheel rim for all types of driving.
Simple construction makes it a great choice for any skill level.
Features 3x rotary encoders, 16x pushbutton, 44x RGB LEDs and optional clutch / shifter paddles.

All manufacturing files required to build the button plate are included in this purchase.
FREE Version also available with limited files.

This is a digital product, you will receive an email with download link after checkout.

Features

- 8x RGB Omron pushbuttons
- 8x Tactile Alps pushbuttons
- 3x RGB backlit rotary encoders
- 2x “Funky” 7-way switches
- 2x Optional paddle shifters
- 2x Optional paddle clutches
- Fully SimHub compatible
- 70mm PCD compatibility

What's Included

- Detailed assembly guide
- Full BOM with links
- .stl files for 3D printing
- .step files for CNC machining
- Decal files in PDF, SVG
- PCB manufacturing files

Compatibility

Compatible with PC only
Utilises 70mm PCD hub/QR mounting

PERSONAL USE LICENSE ONLY
Files are for personal use only, non-commercial and not
for resale. This includes parts made using the files and/or
altered files.
Copyright by KODAI Racing
